0406 Side Bend Neon flex DC 24V 8W IP67 outdoor waterproof 2216 Led Neon flex
- Made of high quality silicone
- Integrated extrusion molding process
- 4mm PCB standard specs
- Flexible ‘side bend’ design for creative LED strip installation
- IP67 protection level, salt solution resistance, acids and alkalis and UV resistance
- Available in 2700K, 3000K, 4000K, 6000K
- High efficacy up to 45lm per meter

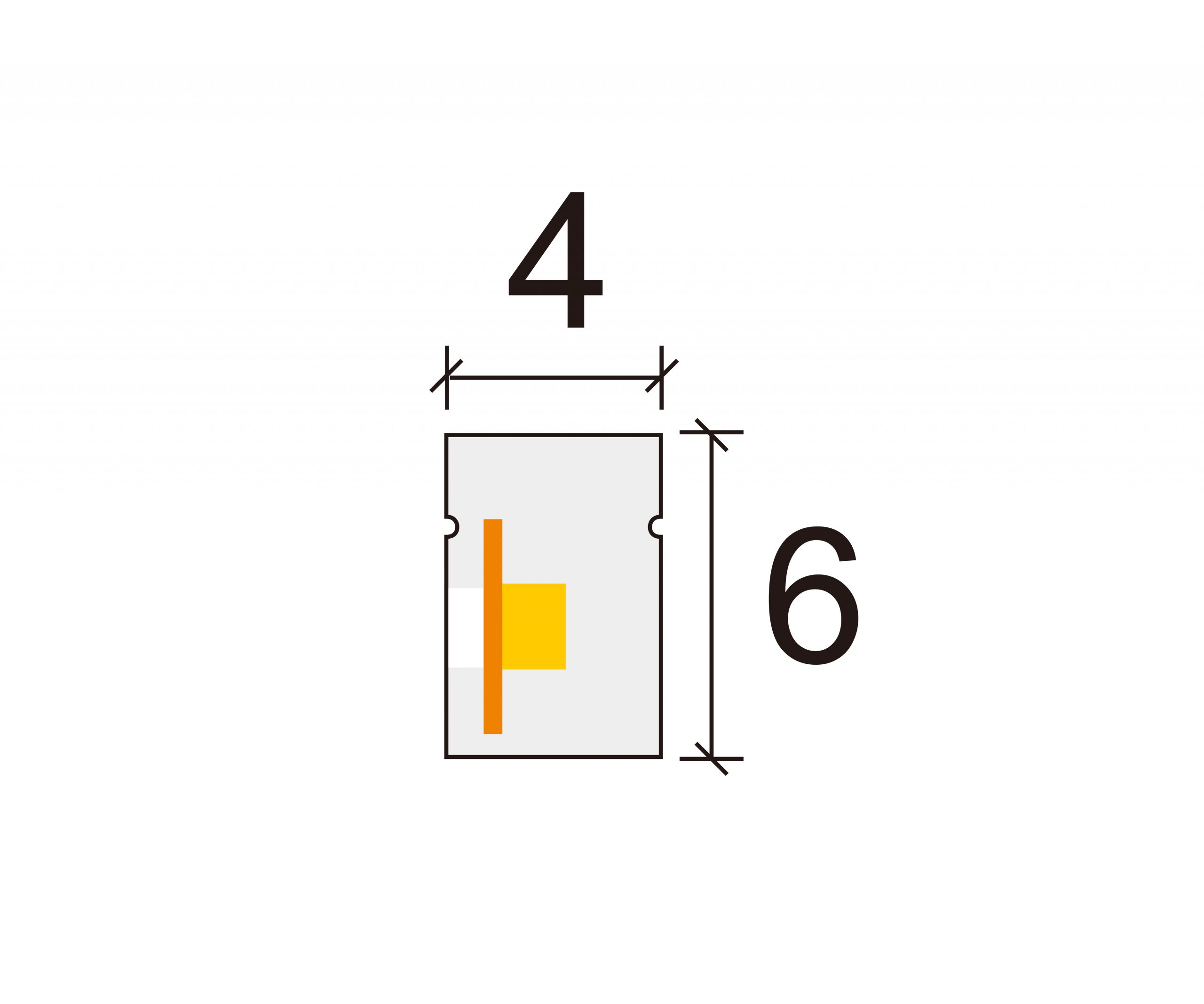

- width 4mm, height 6mm
- 80+ color rendering index, Ra90 is available
- Cut unit 50mm, Easy installation
- 50,000 hours rated life / 3 year warranty
Decriptions
This 0406 Side Bend Neon Flex features 240 LEDs per meter and is encapsulated in high-quality silicone, making it suitable for both indoor and outdoor applications. Its side-bend design (W04mm × H06mm) allows creative installations, while the high-CRI light source (80+, optional Ra90) ensures superior color rendering and bright, uniform illumination. The flex is UV- and saltwater-resistant, providing durability against environmental factors.
Built with a 4mm PCB using an integrated extrusion molding process, the strip delivers up to 45 lm per meter and is available in 2700K, 3000K, 4000K, and 6000K. It is cuttable every 25mm and includes easy installation features. With a 50,000-hour rated life and 3-year warranty, it offers a reliable, high-performance solution for decorative and functional lighting projects.
Order Information
Single Color Options
| Model | Voltage | Color (K) | Power | LED Type | LED Qty | Efficacy (lm/W) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| N04W67-221627-024CV-240S-WYX-S0406 | 24V | 2700K | 8W | 2216 | 240 | 45 | IP67 | 90 | 25mm/6LEDs |
| N04W67-221630-024CV-240S-WYX-S0406 | 24V | 3000K | 8W | 2216 | 240 | 50 | IP67 | 90 | 25mm/6LEDs |
| N04W67-221640-024CV-240S-WYX-S0406 | 24V | 4000K | 8W | 2216 | 240 | 55 | IP67 | 90 | 25mm/6LEDs |
| N04W67-221660-024CV-240S-WYX-S0406 | 24V | 6000K | 8W | 2216 | 240 | 55 | IP67 | 90 | 25mm/6LEDs |
Download
Accessories
2CL-0406-002
Aluminun Clip for 04*06 neon flex, 4mm length, with Hole
2AP-0406-100
Aluminun Channel for 04*06 neon flex, 1000mm length, with 2pcs Holes
2FC-0406-XXX
Flexible neon channel, for 04*06 neon flex, customized length

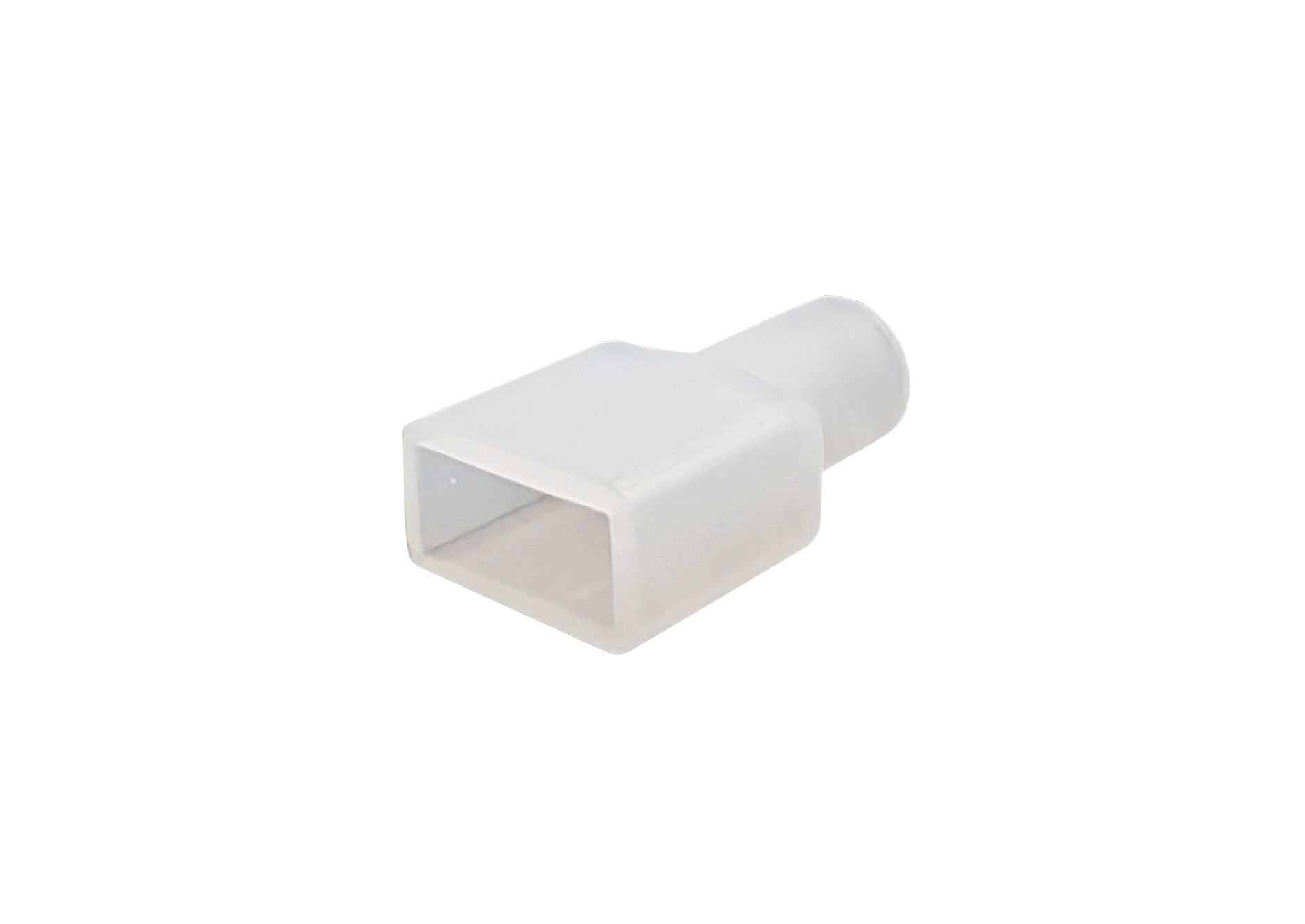

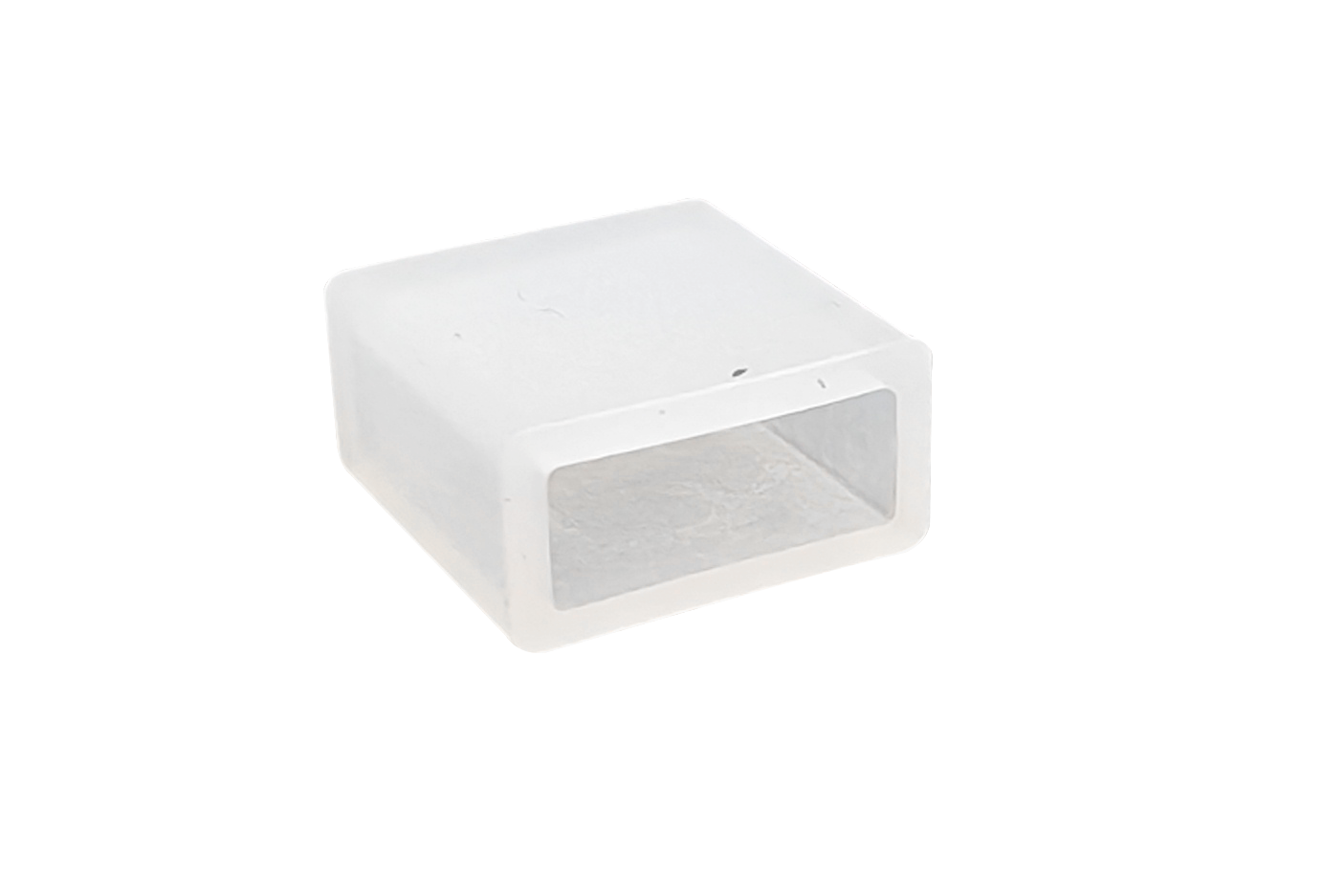

2EN-0406-SOH
End cap (without hole), silicone material, for 04*06 neon flex
2EN-0406-SSH
End cap (with hole at side face) silicone material, for 04*06 neon flex
2EN-0406-STH
End cap (with hole at top face) silicone material, for 04*06 neon flex.
