0409 Side Bend Neon flex DC 24V 6W IP67 outdoor waterproof 2835 Led Neon flex
- Made of high quality silicone
- Integrated extrusion molding process
- 6mm PCB standard specs
- Flexible ‘side bend’ design for creative LED strip installation
- IP67 protection level, salt solution resistance, acids and alkalis and UV resistance
- Available in 2700K, 3000K, 4000K, 6000K
- High efficacy up to 55lm per meter

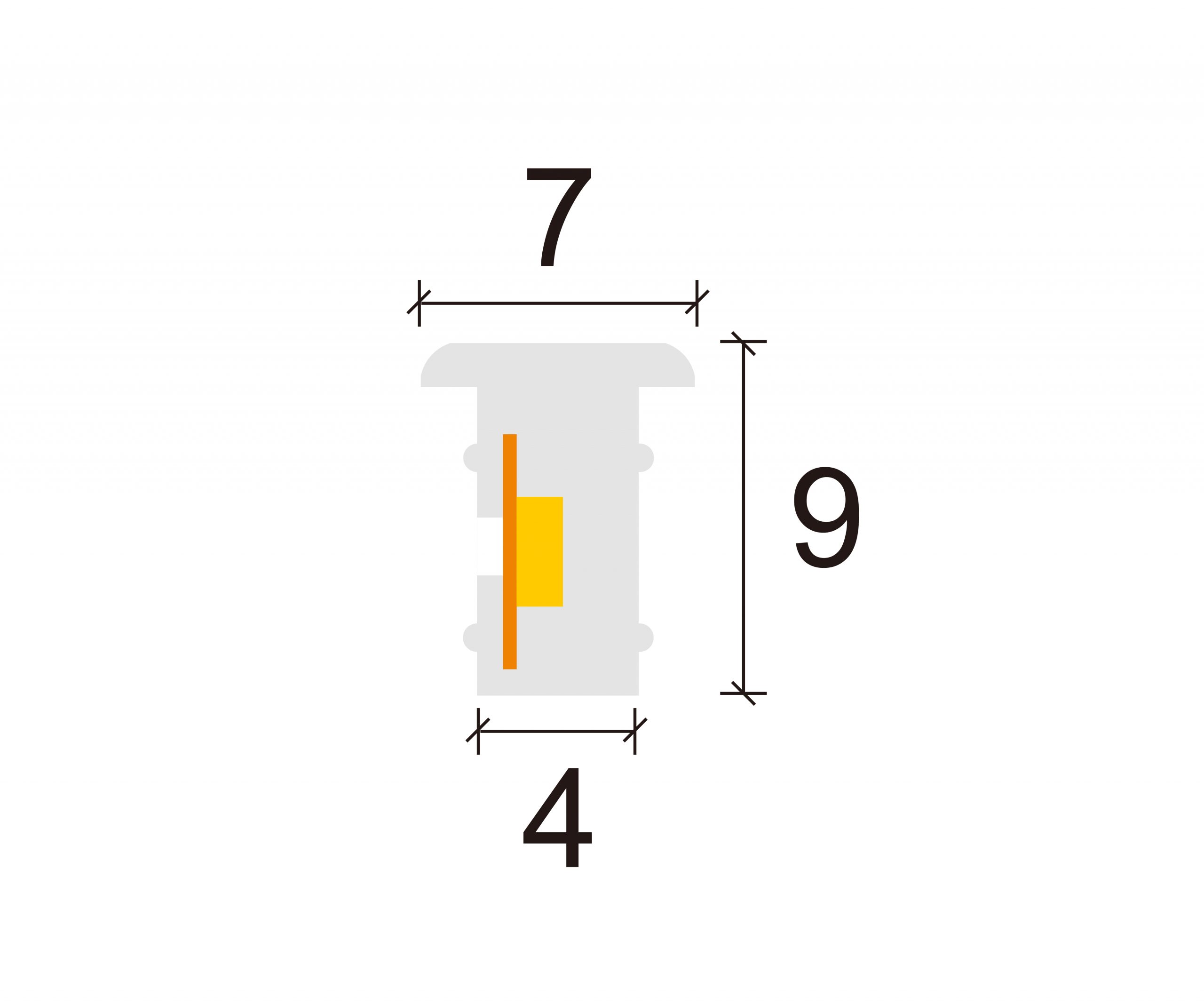

- width 04mm, height 09mm
- 80+ color rendering index, Ra90 is available
- Cut unit 50mm, Easy installation
- 50,000 hours rated life / 3 year warranty
Decriptions
This 0409 Side Bend Neon Flex features 160 LEDs per meter and is encapsulated in high-quality silicone, making it suitable for both indoor and outdoor applications. Its side-bend design (W04mm × H09mm) allows creative installations, while the high-CRI light source (80+, optional Ra90) ensures superior color rendering and bright, uniform illumination. The flex is UV- and saltwater-resistant, providing durability against environmental factors.
Built with a 6 mm PCB using an integrated extrusion molding process, the strip delivers up to 55 lm per meter and is available in 2700K, 3000K, 4000K, and 6000K. It is cuttable every 50mm and includes easy installation features. With a 50,000-hour rated life and 3-year warranty, it offers a reliable, high-performance solution for decorative and functional lighting projects.
Order Information
Single Color Options
| Model | Voltage | Color (K) | Power | LED Type | LED Qty | Efficacy (lm/W) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| N06W67-283527-024CV-160S-WYX-S0409T | 24V | 2700K | 6W | 2835 | 160 | 55 | IP67 | 90 | 50mm/8LEDs |
| N06W67-283530-024CV-160S-WYX-S0409T | 24V | 3000K | 6W | 2835 | 160 | 60 | IP67 | 90 | 50mm/8LEDs |
| N06W67-283540-024CV-160S-WYX-S0409T | 24V | 4000K | 6W | 2835 | 160 | 65 | IP67 | 90 | 50mm/8LEDs |
| N06W67-283560-024CV-160S-WYX-S0409T | 24V | 6000K | 6W | 2835 | 160 | 65 | IP67 | 90 | 50mm/8LEDs |
Mini Cut Options
| Model | Voltage | Color (K) | Power | LED Type | LED Qty | Efficacy (lm/W) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| N06W67-283527-024CV-160S-WYX-S0409T | 24V | 2700K | 6W | 2835 | 160 | 41 | IP67 | 90 | 12.5mm/2LEDs |
| N06W67-283530-024CV-160S-WYX-S0409T | 24V | 3000K | 6W | 2835 | 160 | 45 | IP67 | 90 | 12.5mm/2LEDs |
| N06W67-283540-024CV-160S-WYX-S0409T | 24V | 4000K | 6W | 2835 | 160 | 50 | IP67 | 90 | 12.5mm/2LEDs |
| N06W67-283560-024CV-160S-WYX-S0409T | 24V | 6000K | 6W | 2835 | 160 | 50 | IP67 | 90 | 12.5mm/2LEDs |
Download
Accessories
2PCN-0409-004
Aluminun Clip for 04*09 neon flex, 4mm length, with Hole
2PCN-0409-005
Aluminun Channel for 04*09 neon flex, 1000mm length, with 2pcs Holes
2PCN-0409-006
Flexible neon channel, for 04*09 neon flex, customized length
2PCN-0409-003
End cap (without hole), silicone material, for 04*09 neon flex
2PCN-0409-002
End cap (with hole at side face) silicone material, for 04*09 neon flex
2PCN-0409-001
End cap (with hole at top face) silicone material, for 04*09 neon flex.
