0606 Top Bend Neon flex DC 24V 8W IP67 outdoor waterproof 2216 Led Neon flex
- Made of high quality silicone
- Integrated extrusion molding process
- 4mm PCB standard specs
- Flexible ‘top bend’ design for creative LED strip installation
- IP67 protection level, salt solution resistance, acids and alkalis and UV resistance
- Available in 2700K, 3000K, 4000K, 6000K
- High efficacy up to 45lm per meter

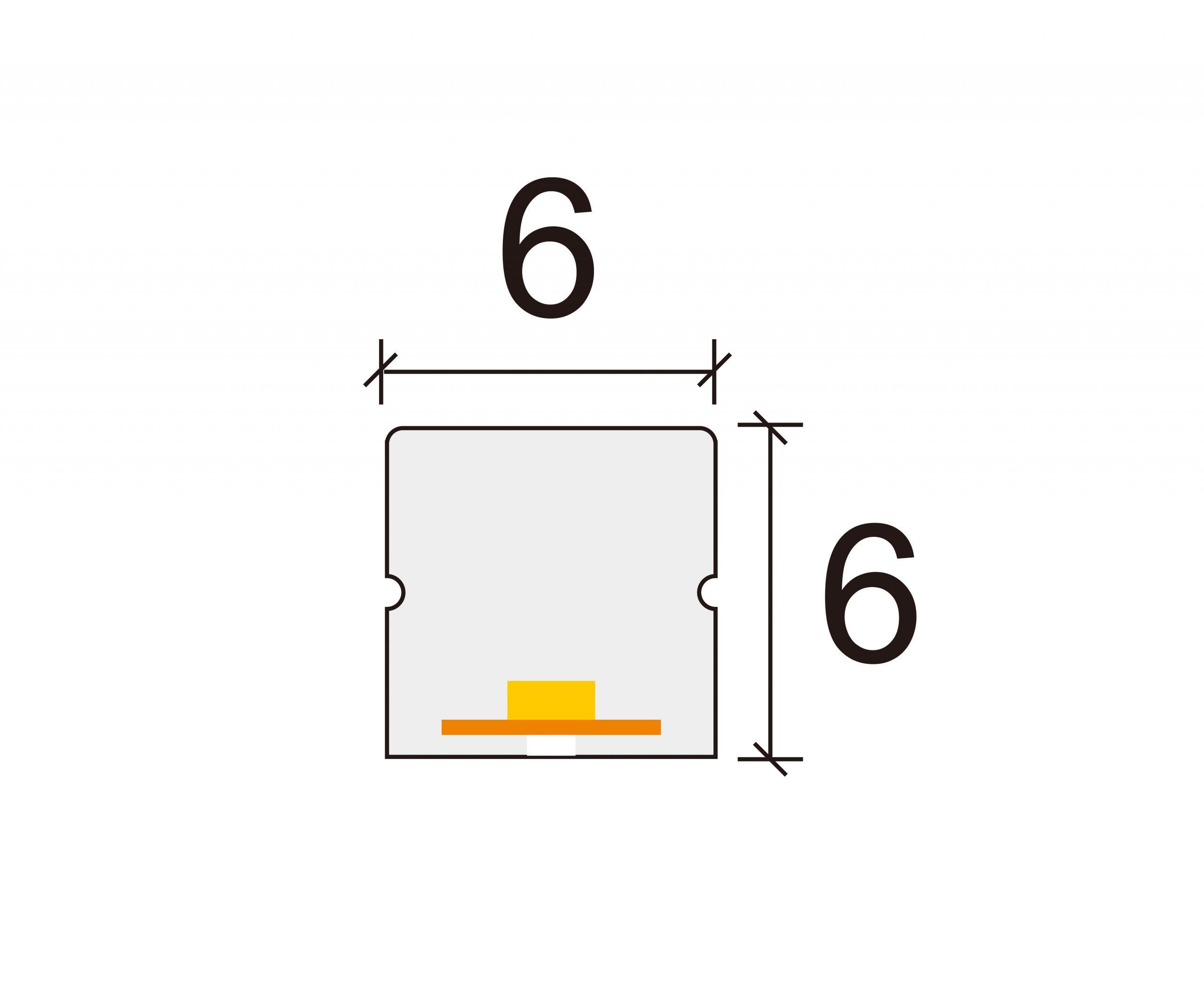

- width 06mm, height 06mm
- 80+ color rendering index, Ra90 is available
- Cut unit 25mm, Easy installation
- 50,000 hours rated life / 3 year warranty
Decriptions
This 0606 Top Bend Neon Flex features 240 LEDs per meter and is encapsulated in high-quality silicone, making it suitable for both indoor and outdoor applications. Its top-bend design (W06mm × H06mm) allows creative installations, while the high-CRI light source (80+, optional Ra90) ensures superior color rendering and bright, uniform illumination. The flex is UV- and saltwater-resistant, providing durability against environmental factors.
Built with a 4mm PCB using an integrated extrusion molding process, the strip delivers up to 45 lm per meter and is available in 2700K, 3000K, 4000K, and 6000K. It is cuttable every 25mm and includes easy installation features. With a 50,000-hour rated life and 3-year warranty, it offers a reliable, high-performance solution for decorative and functional lighting projects.
Order Information
Single Color Options
| Model | Voltage | Color (K) | Power | LED Type | LED Qty | Efficacy (lm/W) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| N04W67-221627-024CV-240S-WYX-T0606 | 24V | 2700K | 8W | 2216 | 240 | 45 | IP67 | 90 | 25mm/6LEDs |
| N04W67-221630-024CV-240S-WYX-T0606 | 24V | 3000K | 8W | 2216 | 240 | 50 | IP67 | 90 | 25mm/6LEDs |
| N04W67-221640-024CV-240S-WYX-T0606 | 24V | 4000K | 8W | 2216 | 240 | 55 | IP67 | 90 | 25mm/6LEDs |
| N04W67-221660-024CV-240S-WYX-T0606 | 24V | 6000K | 8W | 2216 | 240 | 60 | IP67 | 90 | 25mm/6LEDs |
Download
Accessories
2PCN-0606-004
Aluminun Clip for 06*06 neon flex, 6mm length, with Hole
2PCN-0606-005
Aluminun Channel for 06*06 neon flex, 1000mm length, with 2pcs Holes
2PCN-0606-006
Flexible neon channel, for 06*06 neon flex, customized length
2PCN-0606-003
End cap (without hole), silicone material, for 06*06 neon flex
2PCN-0606-002
End cap (with hole at side face) silicone material, for 06*06 neon flex
2PCN-0606-001
End cap (with hole at top face) silicone material, for 06*06 neon flex.
