4040-RGBW-120LED-8MM-24V-15W-WS2814F-10Pixels

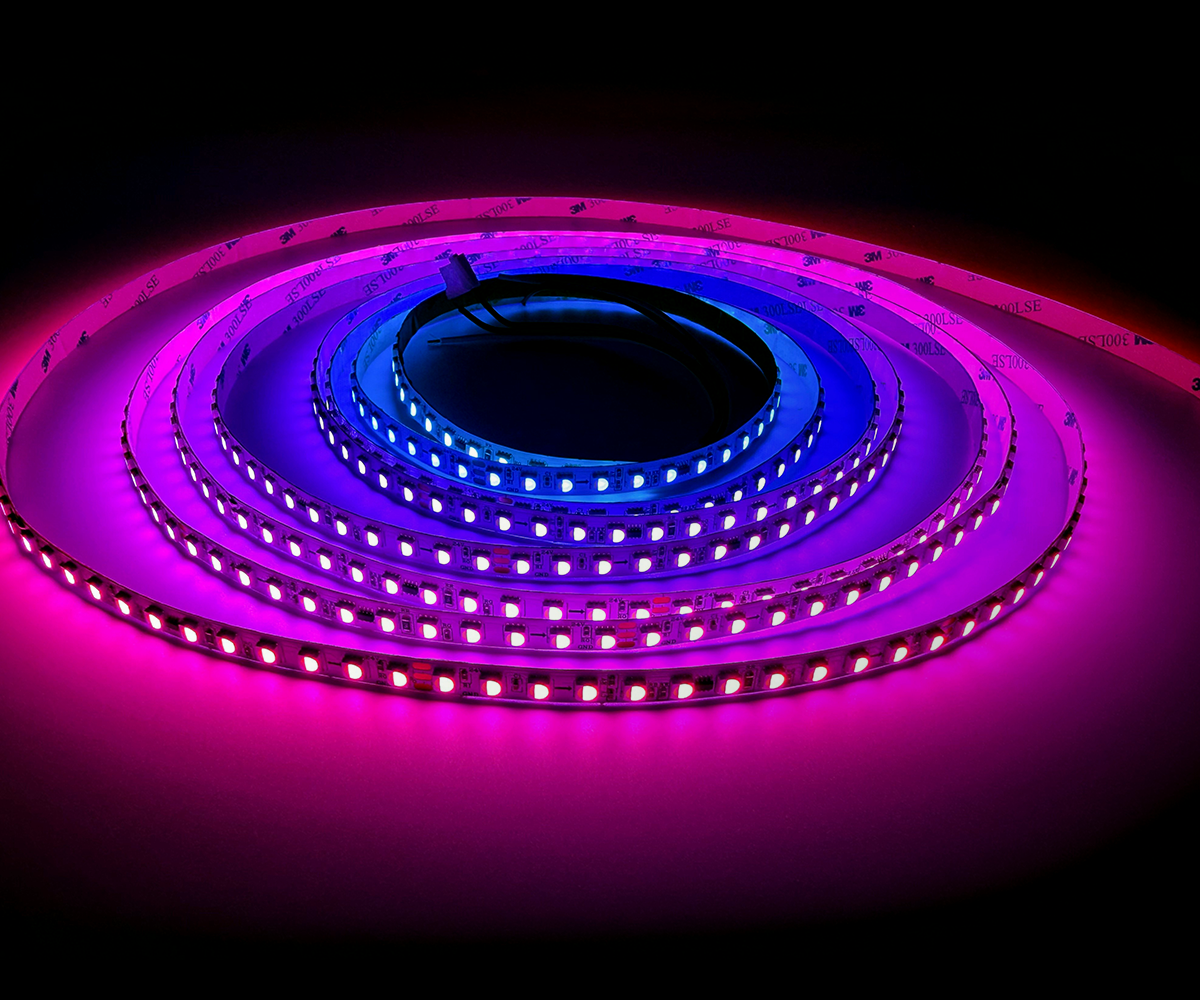

Addressable RGBW WS2814F IC Digital 120Leds DC 24V 15W IP20 4040 2OZ 8mm Led Strip
This strip uses an external IC WS2814F chip, allowing each group of LEDs on the strip to be controlled individually. You can program it to create various patterns, effects, and animations with dynamic, stunning visual impact. The PCB width is 8mm, featuring 120 LEDs per meter for a high-density lighting effect. Each reel is 5 meters long. It is compatible with most pixel light controllers, such as K1000, SP108E, and others. The strip also includes double-sided 3M adhesive tape, making installation quick and effortless.
- DC24V Input Voltage
- WS2814F IC, individually controlled
- 4040 RGBW SMD 120led per meter, 10 Pixels/M
- Work with SPI Pixel lighting controller
- 8mm 2Oz PCB with good heat dissipation
- Easy Installation featuring 3M 300LSE Adhensive Layer
- Cut unit 100mm with LED spacing of 8.333mm
- 50,000hours rated life / 3 years warranty
Order Information
| Model | Voltage | Power/M | Pixels/M | LED Type | Qty | Angle | CRI | Color | Cut Unit | Brightness | Effiacy | Max Run |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S08W20-4040MC-024AD-120S-MY3-WS2814F | 24V | 15W | 10 | 4040 | 120 | 120 | 90(White) | RGBW | 100mm | N / A | N / A | 5M |
Download
Accessories
2T20-104-STS
Tranparent Acrylic,10mm PCB with 4pins,non waterproof, strip to strip
2T20-104-PTS
Tranparent Acrylic,10mm PCB with 4pins,150mm lenght wire, non waterproof strip to Power
2T20-104-SWS
Tranparent Acrylic,10mm PCB with 4pins,150mm wire, both ends with connector.non waterproof, strip to strip
2T65-104-PTS
PVC,10mm PCB with 4pins,150mm lenght wire, waterproof strip to Power
2T65-104-STS
PVC,10mm PCB with 4pins, waterproof strip to strip
2T65-104-SWS
PVC,10mm PCB with 4pins,150mm wire, both ends with connector.waterproof strip to strip
