RGBCCT Color DC 24V 5050 84LED 23W 12mm PCB 2Oz 7.14cm cutting LED Strip light IP20
The RGB+CCT LED Flex Strip incorporates an advanced 5-in-1 5050 SMD chip, offering both vibrant RGB color options and ad ustable CCT (Correlated Color Temperature) from 2700K to 6500K for seamless white light tuning. With a density of 84 LEDs per meter, this strip allows for expanded color versatility and smooth transitions across a wide range of hues and temperatures. Designed for easy installation, it features 3M selfadhesive backing and cut points every 71.42mm for flexible customization. The strip is compatible with RF remote controllers or DMX decoders and comes with a 3-year warranty for reliable performance.
- Super Bright 5050 5in1 LEDs
- High density, 84pcs 5050 SMD per Meter
- Red,Green, Blue, 2700K warm white,6500K cool White in one led strip
- Work with controller ro DMX decoder
- 80+ color rendering index, Ra90 is available
- Easy Installation featuring 3M 300LSE Adhensive Layer

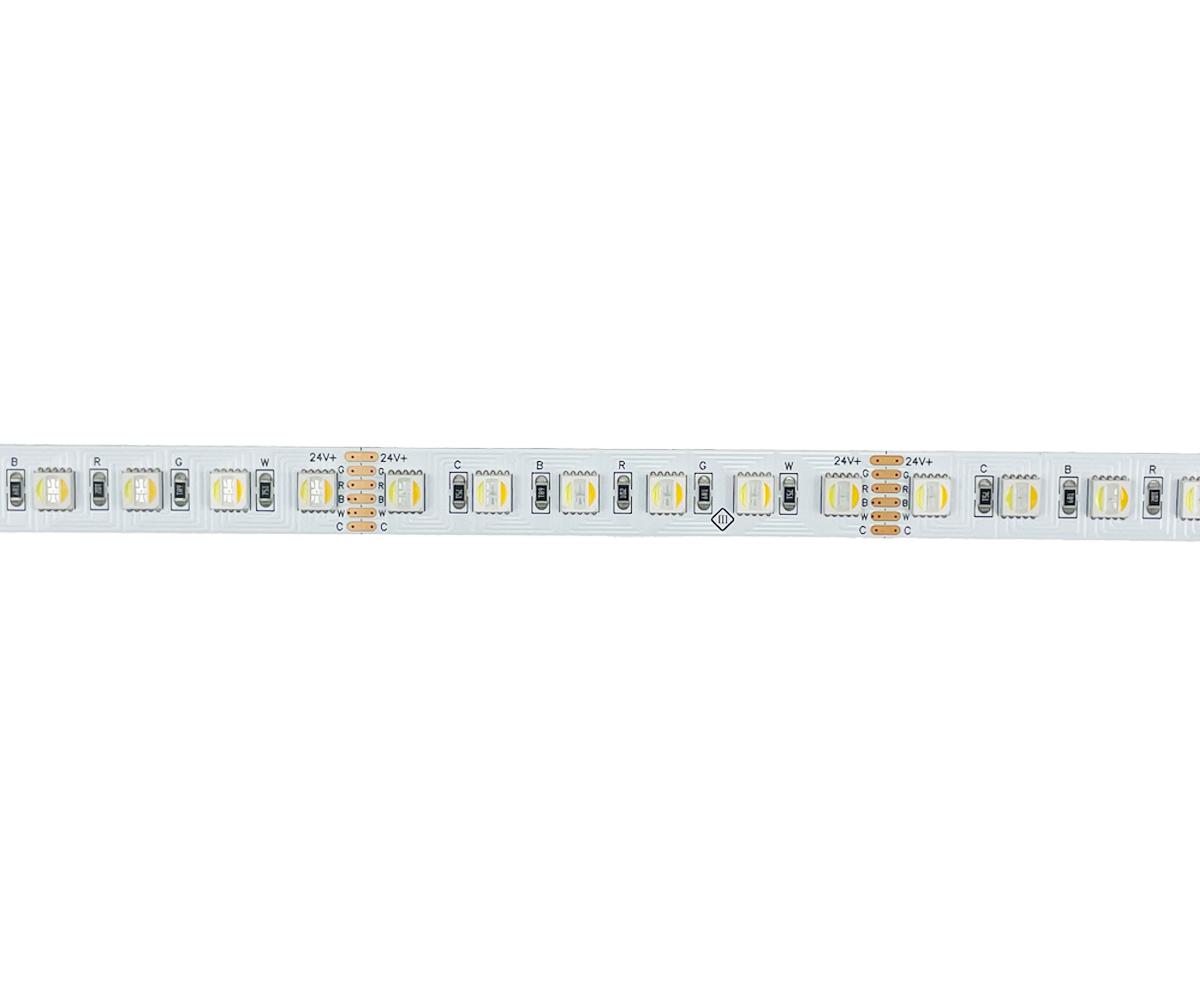

- Cut unit 71.42mm with LED spacing of 11.9
- Three years warranty
Order Information
Model | Color | CCT Wavelength | Voltage | Power | LED Type | LED Qty | PCB Width | Beam Angle | CRI | Cut Unit | Brightness | Effiacy | Max Run |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
S12W20-5050FC-024CV-084S-MY3 | Red | 618-624nm | 24V | 4.6W | 5050 | 84 | 12mm | 120 | 80 | 7.14cm | 194.58lm | 42.3 | 5M |
S12W20-5050FC-024CV-084S-MY3 | Green | 522-528nm | 24V | 4.6W | 5050 | 84 | 12mm | 120 | 80 | 7.14cm | 349.6lm | 76 | 5M |
S12W20-5050FC-024CV-084S-MY3 | Blue | 468-474nm | 24V | 4.6W | 5050 | 84 | 12mm | 120 | 80 | 7.14cm | 155.94lm | 33.9 | 5M |
S12W20-5050FC-024CV-084S-MY3 | Warm White | 2700K | 24V | 4.6W | 5050 | 84 | 12mm | 120 | 80 | 7.14cm | 446.2lm | 97 | 5M |
S12W20-5050FC-024CV-084S-MY3 | Warm White | 6000K | 24V | 4.6W | 5050 | 84 | 12mm | 120 | 80 | 7.14cm | 552lm | 120 | 5M |
