5050-RGB-60LED-12MM-12V-12W-UCS1903-20Pixels-Long Run 15M
Addressable RGB WS2811 IC Digital 60LED DC 12V 12W IP20 3OZ 12mm Led Strip
This strip uses an external WS2811 IC, allowing individual pixel control for vivid effects and animations.Our upgraded version supports up to 10 meters without voltage drop, and 15 meters feed power at both ends.It features a 3Oz, 12mm wide PCB, ensuring high stability, and comes with double-sided 3M tape for easy installation.Compatible with most pixel controllers like K1000, SP108E, etc.
- DC12V Input Voltage
- Ws2811, individually pixel controlled
- 5050 60LED per meter, 20pixels/m
- Work with SPI Pixel lighting controller
- 12mm 3Oz PCB with good heat dissipation
- Work on 10-15M in series without voltage dropping
- Easy Installation featuring 3M 300LSE Adhesive Layer

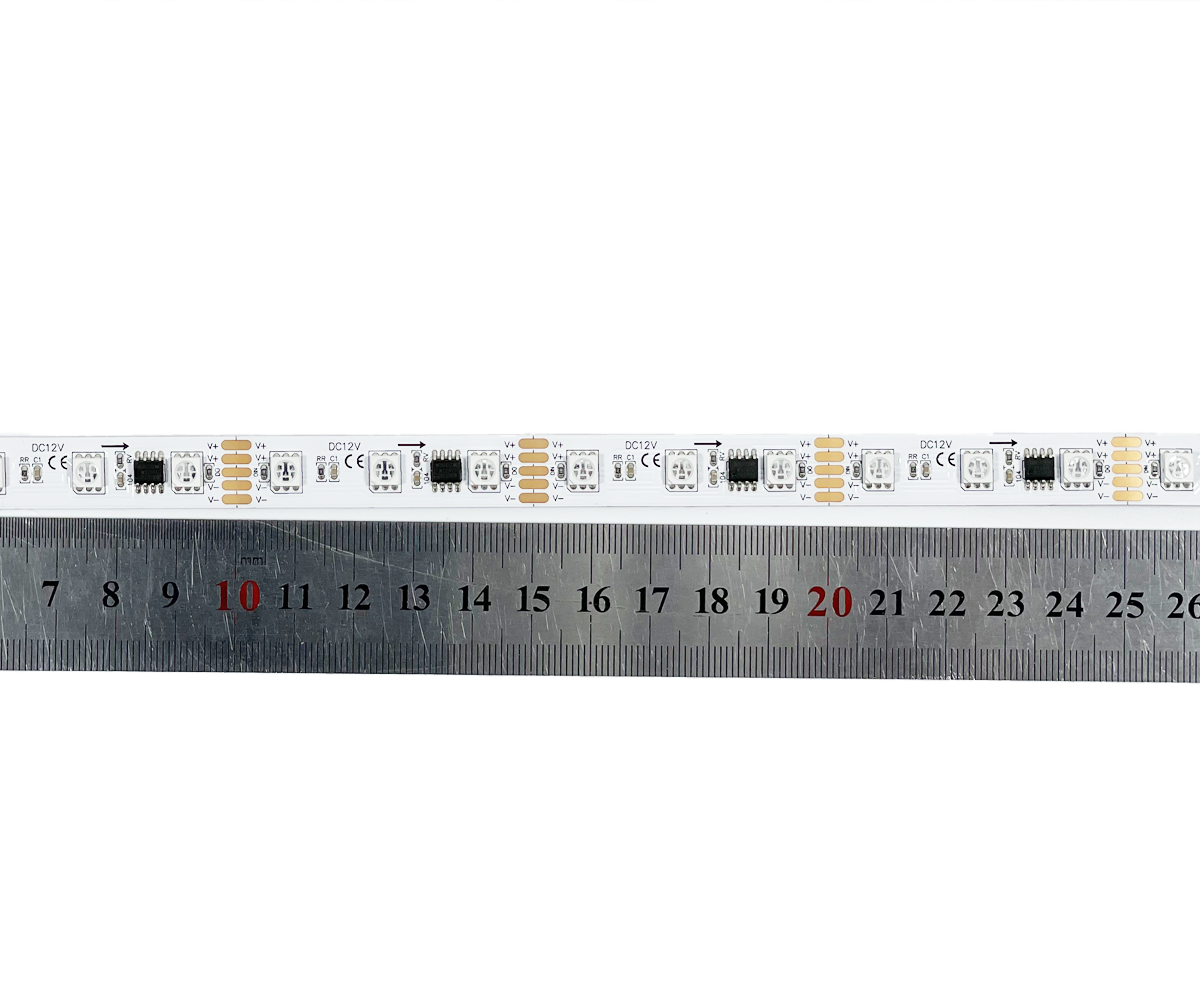

- Cut unit 50mm
- 50,000 hours rated life / 3 years warranty
Order Information
Model | Voltage | Power/M | Pixels/M | LED Type | Qty | Angle | CRI | Color | Cut Unit | Brightness | Effiacy | Max Run |
---|---|---|---|---|---|---|---|---|---|---|---|---|
S12W20-5050TC-012AD-060S-NY3-UCS1903 | 12V | 12W | 20 | 5050 | 60 | 120 | N / A | RGB | 100mm | N / A | N / A | 15M |
