Home » Products » COB-WHITE-480CHIP-230V-12W

  • 480 chips 230V AC led strip light

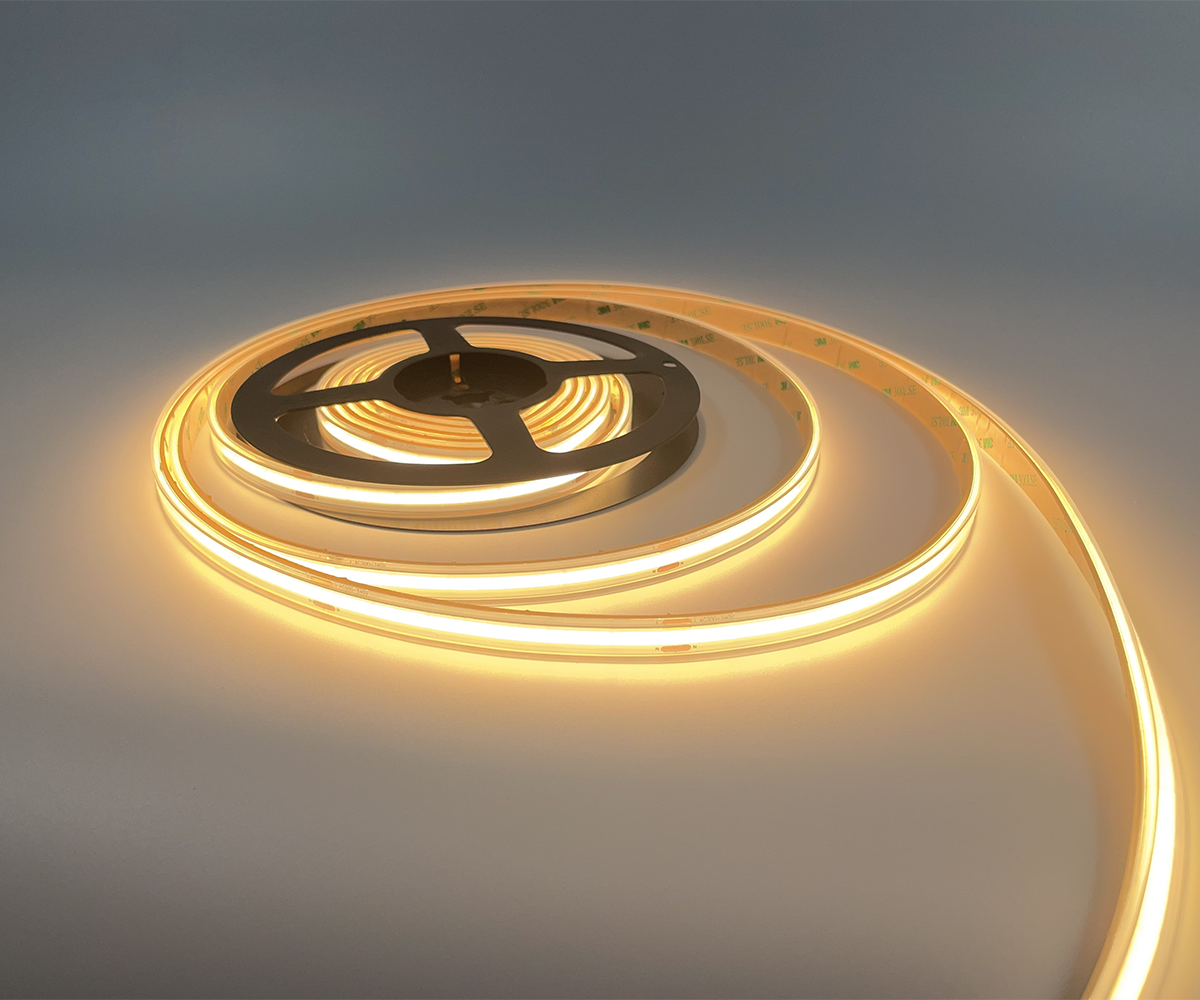

AC 230V White Color COB 480Chip 12W 10mm PCB 2Oz 12W 12*4mm Silicone Extrusion LED Strip

This COB strip light works at 220-240V voltage , powered directly by main supply, no need rectifiers. Up to 480pcs chip s/m and delivery a soft and bright lighting effects, big 180 degree beam angle, no any dot. Though silicone extrusion waterproof process, it is safe and will be good at indoor and out application. It is available in 2700K,3000K,4000K,6000K or red, green, blue color. it is completed with 3m Self-adhesive backing for easy fixing into LED channel, cut points every 100mm and a 3 year guarantee

  • Input Voltage: AC220-240V
  • High quality double sided Copper FPC board, Flexible and resistance to bending, strong and durable
  • High quality silicone extrusion waterproof process,
  • IP67 safe protection
  • High density COB chips, soft and brighter lighting
  • High CRI, Ra>90
  • Big beam angle, 180 degree
    Easy Installation featuring 3M 300LSE Adhesive Layer
    Cut unit 100mm
    50,000hurs rated life / 3 year warranty

Order Information

Model Voltage Power LED Type LED Qty PCB Width Beam Angle CRI Color Cut Unit  Brightness Effiacy Max Run
S10W66-FCOB27-230CV-480S-MY3 230V 12W COB 480 10mm 180 90 White 167cm 1080lm/M 90lm/W 50-100M
S10W66-FCOB30-230CV-480S-MY3 230V 12W COB 480 10mm 180 90 White 167cm 1140lm/M 95lm/W 50-100M
S10W66-FCOB40-230CV-480S-MY3 230V 12W COB 480 10mm 180 90 White 167cm 1200lm/M 100lm/W 50-100M
S10W66-FCOB60-230CV-480S-MY3 230V 12W COB 480 10mm 180 90 White 167cm 1140lm/M 95lm/W 50-100M

Download

Accessories

2PCN-BTB-005

LED connector for AC COB stirp light 10mm

2PCN-BTB-005

LED connector for AC COB stirp light 10mm

2PCN-CTB-005

FPC to FPC Connector for AC COB stirp light 10mm

screw
End Cap

LED connector for stirp light 10mm,
