0410 Side Bend Neon flex DC 6W 24V IP67 outdoor waterproof 2835 Led Neon flex
- Made of high quality silicone extrusion
- Available in 2700K, 3000K, 4000K, 6000K
- Flexible ‘Side bend’ design for creative LED strip installation
- IP67 protection level, salt solution resistance, acids and alkalis and UV resistance
- High efficacy up to 300lm per meter

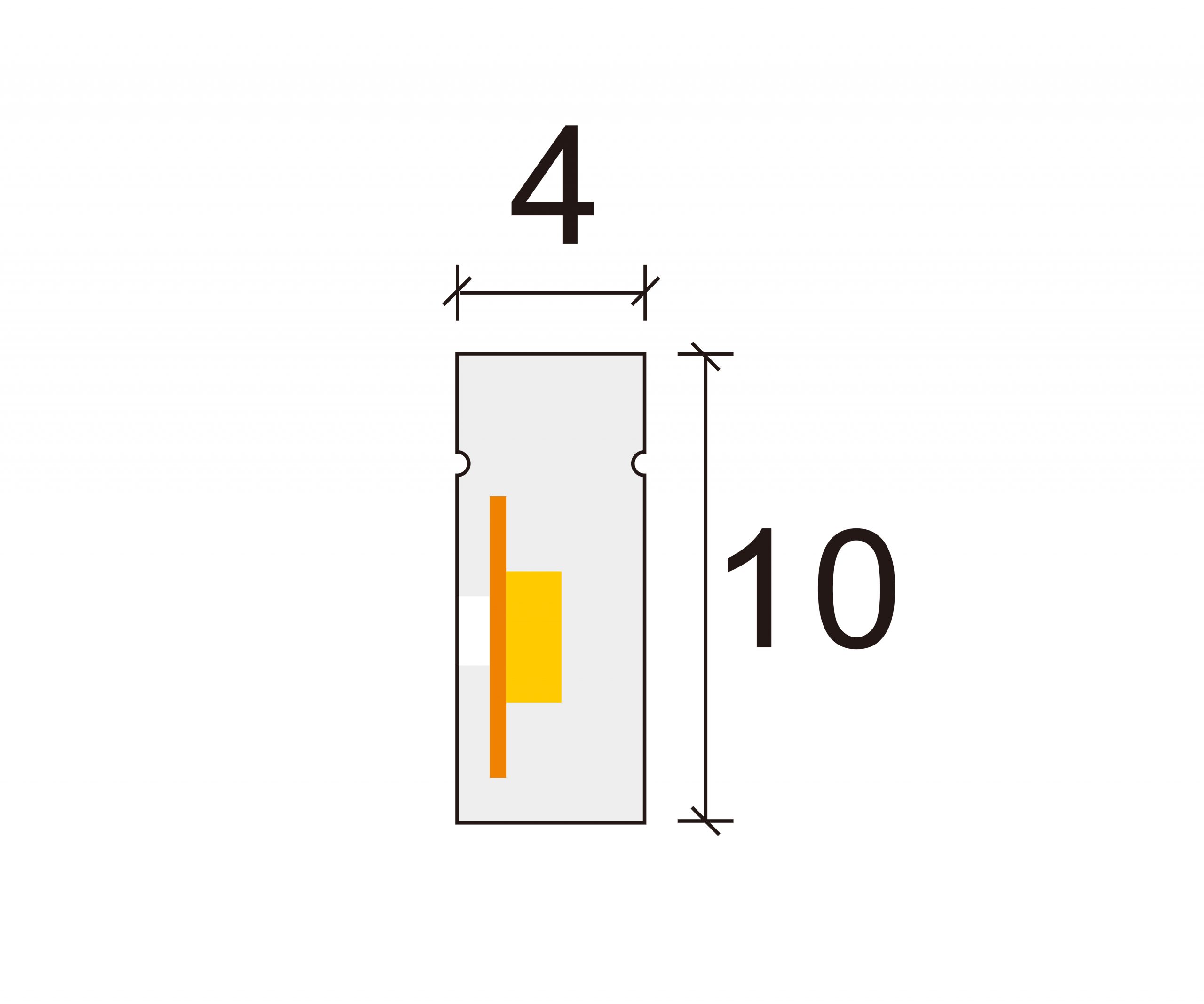

- width 4mm, height 10mm
- High color rendering index (CRI 90 as standard)
- Cut unit 50mm, Easy installation
- 50,000 hours rated life / 3 year warranty
This 0410 Side-Bend Neon Flex features 160 LEDs/m in high-quality silicone, suitable for both indoor and outdoor use. Its top-bend design (W4 × H10mm) allows flexible installations, while CRI 90 ensures accurate, uniform lighting. It is available in White color. The flex is UV- and saltwater-resistant for enhanced durability.
Built with a 6mm PCB and integrated extrusion process, it delivers stable performance and is available in 2700K, 3000K, 4000K, and 6000K. It is cuttable every 50mm for easy installation. With a 50,000-hour lifespan and 3-year warranty, it provides a reliable, high-performance solution.
Order Information
Single Color Options
| Model | Voltage | Color (K) | Power | LED Type | LED Qty | Efficacy (lm/W) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| N06W67-283527-024CV-160S-WYX-S0410 | 24V | 2700K | 6W | 2835 | 160 | 35 | IP67 | 90 | 50mm/7LEDs |
| N06W67-283530-024CV-160S-WYX-S0410 | 24V | 3000K | 6W | 2835 | 160 | 40 | IP67 | 90 | 50mm/7LEDs |
| N06W67-283540-024CV-160S-WYX-S0410 | 24V | 4000K | 6W | 2835 | 160 | 45 | IP67 | 90 | 50mm/7LEDs |
| N06W67-283560-024CV-160S-WYX-S0410 | 24V | 6000K | 6W | 2835 | 160 | 40 | IP67 | 90 | 50mm/7LEDs |
Mini Cut Options
| Model | Voltage | Color (K) | Power | LED Type | LED Qty | Efficacy (lm/W) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| N10W67-283527-024CV-168S-WYX-T2014 | 24V | 2700K | 14W | 2835 | 168 | 30 | IP67 | 90 | 11.9mm/2LEDs |
| N10W67-283530-024CV-168S-WYX-T2014 | 24V | 3000K | 14W | 2835 | 168 | 35 | IP67 | 90 | 11.9mm/2LEDs |
| N10W67-283540-024CV-168S-WYX-T2014 | 24V | 4000K | 14W | 2835 | 168 | 40 | IP67 | 90 | 11.9mm/2LEDs |
| N10W67-283560-024CV-168S-WYX-T2014 | 24V | 6000K | 14W | 2835 | 168 | 35 | IP67 | 90 | 11.9mm/2LEDs |
Download
Accessories
2PCN-0410-004
Aluminun Clip for 04*10 neon flex, 20mm length, with Hole
2PCN-0410-005
Aluminun Channel for 04*10 neon flex, 1000mm length, with 2pcs Holes
2PCN-0410-006
Flexible neon channel, for 04*10 neon flex, customized length
2PCN-0410-003
End cap (without hole), silicone material, for 04*10 neon flex
2PCN-0410-002
End cap (with hole at side face) silicone material, for 04*10 neon flex
2PCN-0410-001
End cap (with hole at top face) silicone material, for 04*10 neon flex.
