1010 Top Bend Neon flex DC 12W 24V IP67 outdoor waterproof 2835 Led Neon flex
- Made of high quality silicone extrusion
- Available in multiple color options: White(standard and short cut), CCT, RGB
- Flexible ‘Top bend’ design for creative LED strip installation
- IP67 protection level, salt solution resistance, acids and alkalis and UV resistance
- High efficacy up to 700lm per meter

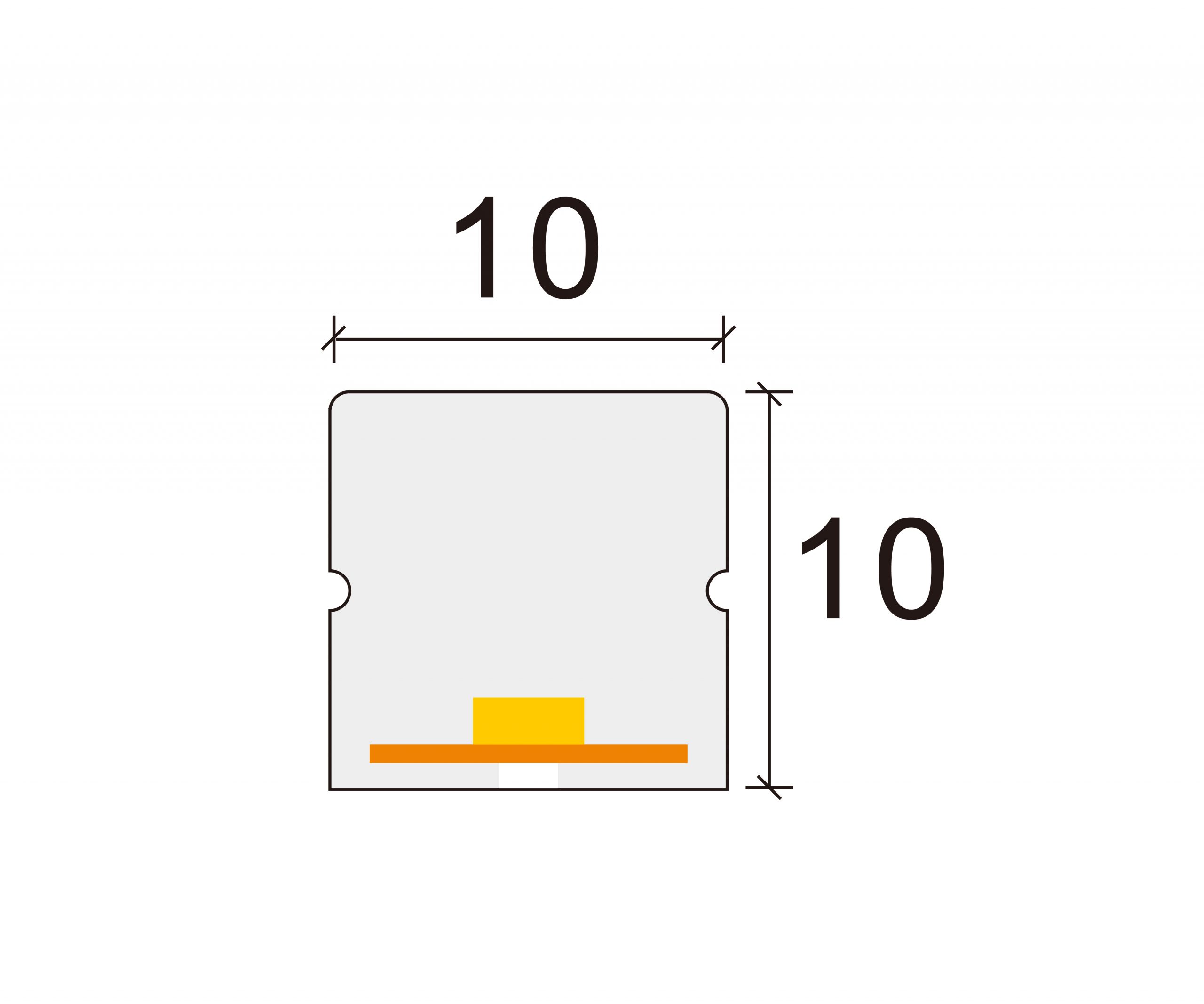

- width 10mm, height 10mm
- High color rendering index (CRI 90 as standard)
- Cut unit 50mm, Easy installation
- 50,000 hours rated life / 3 year warranty
This 1010 Top-Bend Neon Flex features 140 LEDs/m in high-quality silicone, suitable for both indoor and outdoor use. Its top-bend design (W10 × H10mm) allows flexible installations, while CRI 90 ensures accurate, uniform lighting. It is available in White, CCT, RGB. The flex is UV- and saltwater-resistant for enhanced durability.
Built with a 8mm PCB and integrated extrusion process, it delivers stable performance and is available in 2700K, 3000K, 4000K, and 6000K. It is cuttable every 50mm for easy installation. With a 50,000-hour lifespan and 3-year warranty, it provides a reliable, high-performance solution.
Order Information
Single Color Options
| Model | Voltage | Color (K) | Power | LED Type | LED Qty | Efficacy (lm/W) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| N08W67-283527-024CV-140S-WYX-T1010 | 24V | 2700K | 12W | 2835 | 140 | 60 | IP67 | 90 | 50mm/7LEDs |
| N08W67-283530-024CV-140S-WYX-T1010 | 24V | 3000K | 12W | 2835 | 140 | 65 | IP67 | 90 | 50mm/7LEDs |
| N08W67-283540-024CV-140S-WYX-T1010 | 24V | 4000K | 12W | 2835 | 140 | 70 | IP67 | 90 | 50mm/7LEDs |
| N08W67-283560-024CV-140S-WYX-T1010 | 24V | 6000K | 12W | 2835 | 140 | 65 | IP67 | 90 | 50mm/7LEDs |
Mini Cut Options
| Model | Voltage | Color (K) | Power | LED Type | LED Qty | Efficacy (lm/W) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| N08W67-283527-024CV-120S-WYX-T1010 | 24V | 2700K | 14W | 2835 | 120 | 45 | IP67 | 90 | 11.9mm/2LEDs |
| N08W67-283530-024CV-120S-WYX-T1010 | 24V | 3000K | 14W | 2835 | 120 | 50 | IP67 | 90 | 11.9mm/2LEDs |
| N08W67-283540-024CV-120S-WYX-T1010 | 24V | 4000K | 14W | 2835 | 120 | 55 | IP67 | 90 | 11.9mm/2LEDs |
| N08W67-283560-024CV-120S-WYX-T1010 | 24V | 6000K | 14W | 2835 | 120 | 50 | IP67 | 90 | 11.9mm/2LEDs |
CCT Options
| Model | Voltage | Color (K) | Power | LED Type | LED Qty | Efficacy (lm/W) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| N08W67-2216TW-024CV-240S-WYX-T1010 | 24V | 2700-6000K | 16W | 2216 | 240 | 41 | IP67 | 90 | 50mm/2LEDs |
RGB Options
| Model | Voltage | Color | Power | LED Type | LED Qty | Efficacy (lm/W) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| N08W67-3838TC-024CV-168S-NYX-T1010 | 24V | RGB | 12W | 3838 | 120 | N / A | IP67 | N / A | 35.7mm/6LEDs |
Download
Accessories
2PCN-1010-004
Aluminun Clip for 10*10 neon flex, 20mm length, with Hole
2PCN-1010-005
Aluminun Channel for 10*10 neon flex, 1000mm length, with 2pcs Holes
2PCN-1010-006
Flexible neon channel, for 10*10 neon flex, customized length
2PCN-1010-003
End cap (without hole), silicone material, for 10*10 neon flex
2PCN-1010-002
End cap (with hole at side face) silicone material, for 10*10 neon flex
2PCN-1010-001
End cap (with hole at top face) silicone material, for 10*10 neon flex.
