1616 3D Bend Wall washer DC 24V 16W IP65 outdoor waterproof 2835 Flexible Wall washer
- DC24V Input Voltage, 48LEDs per Meter
- Made of high quality silicone extrusion
- Available in multiple color options: 2700K/3000K/4000K/6000K
- Flexible ‘3D bend’ design for creative LED strip installation
- Beam Angle at 30°/ 30X45° degree
- High efficacy up to 1400 lm per meter

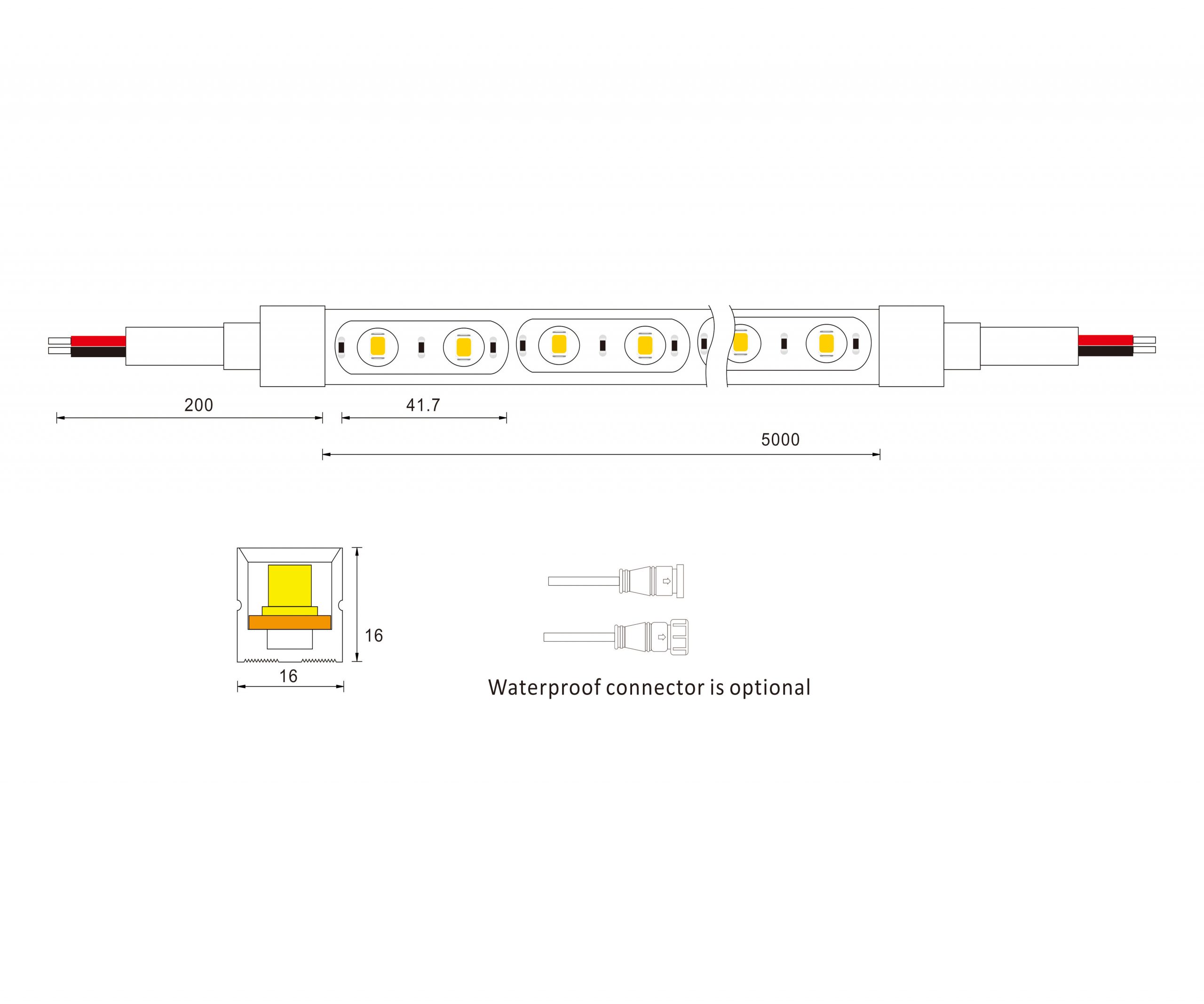

- width 16mm, height 16mm
- High color rendering index (CRI 90 as standard)
- Encapsulated with high quality PU, IP65 waterproof
- 50,000 hours rated life / 3 year warranty
Decriptions
The 1616 3D-Bend Flex Wall Washer features high-efficiency LEDs available in a selection of fixed color temperatures 2700K/ 3000K/ 4000K/ 6000K, delivering consistent color light for a variety of lighting applications. Encapsulated in high-quality PU, the strip achieves an IP65 waterproof rating, making it ideal for reliable outdoor use. Equipped with precision optical lenses, it offers a 30° or 30X45° beam angle, perfectly suited for illuminating coves, domes, and curved facades. Designed for convenience, it includes a 3M self-adhesive backing, enabling quick and easy installation into LED channels. Operating at DC24V with 48 LEDs per meter, this wall washer provides consistent illumination with a CRI > 80 and is backed by a 3-year warranty for long-lasting performance.
Order Information
Single Color Options
| Model | Voltage | Color (K) | Power | LED Type | LED Qty | Efficacy (lm/W) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| W12W65-283527-024CV-048S-MY3-1616 | 24V | 2700K | 16W | 2835 | 48 | 60 | IP65 | 90 | 41.7mm/2LEDs |
| W12W65-283530-024CV-048S-MY3-1616 | 24V | 3000K | 16W | 2835 | 48 | 60 | IP65 | 90 | 41.7mm/2LEDs |
| W12W65-283540-024CV-048S-MY3-1616 | 24V | 4000K | 16W | 2835 | 48 | 60 | IP65 | 90 | 41.7mm/2LEDs |
| W12W65-283560-024CV-048S-MY3-1616 | 24V | 6000K | 16W | 2835 | 48 | 60 | IP65 | 90 | 41.7mm/2LEDs |
Download
Accessories
2PCN-1616-004
Aluminun Clip for 16*16 Wall washer, 20mm length, with Hole
2PCN-1616-005
Aluminun Channel for 16*16 Wall washer, 1000mm length, with 2pcs Holes
2PCN-1616-006
Flexible neon channel, for 16*16 Wall washer, customized length
2PCN-1616-003
End cap (without hole), silicone material, for 16*16 wall washer
2PCN-1616-002
End cap (with hole at side face) silicone material, for 16*16 wall washer
2PCN-1616-001
End cap (with hole at top face) silicone material, for 16*16 wall washer
