2020 3D Bend Wall washer DC 24V 18W IP65 outdoor waterproof 3030 Flexible Wall washer
- DC24V Input Voltage, 24LEDs per Meter
- Made of high quality silicone extrusion
- Available in multiple color options: White, DMX White, CCT, RGB, RGBW support
- Flexible ‘3D bend’ design for creative LED strip installation
- Beam Angle at 30 degree
- High efficacy up to 1400 lm per meter

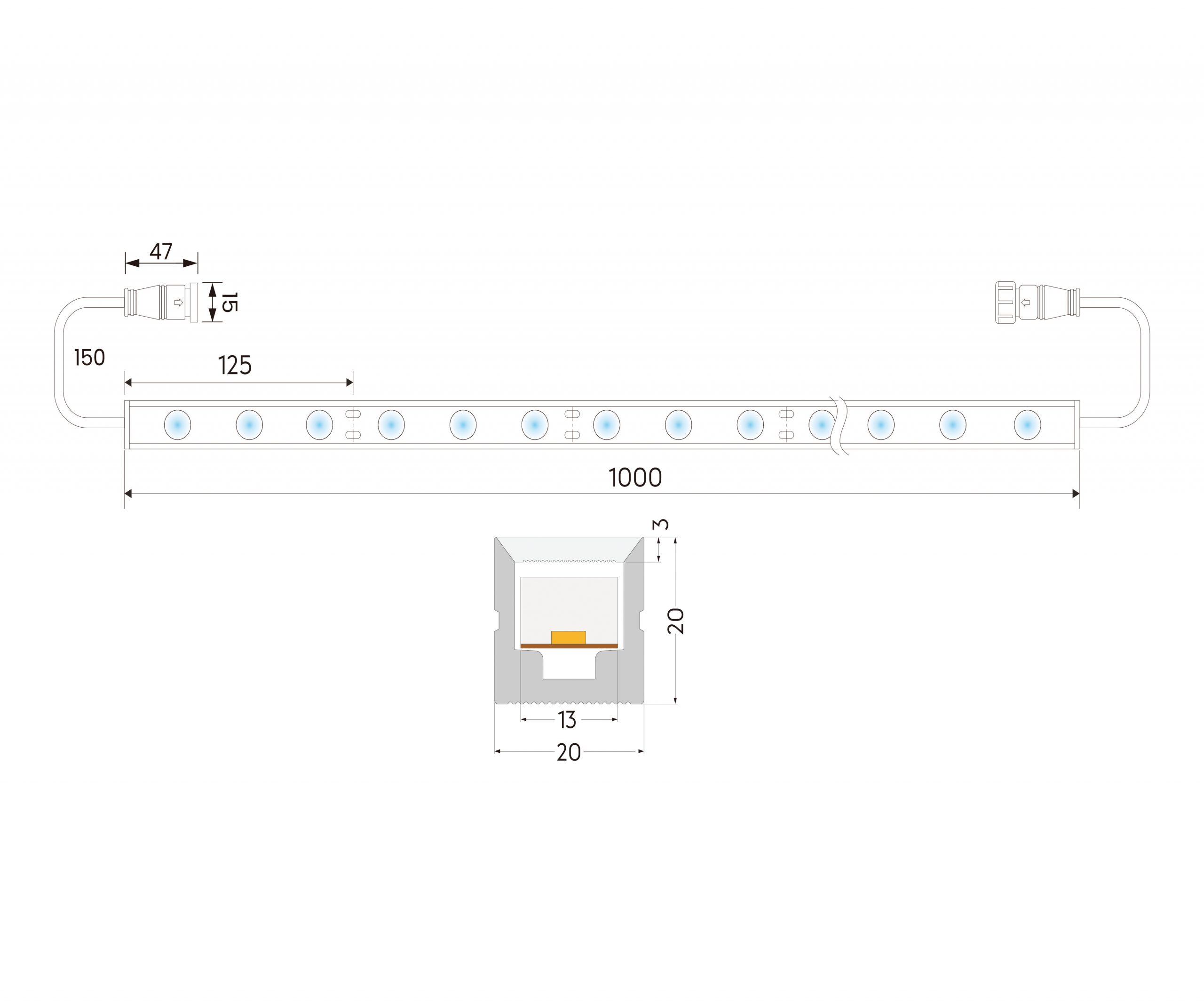

- width 20mm, height 20mm
- High color rendering index (CRI 90 as standard)
- Encapsulated with high quality PU, IP65 waterproof
- 50,000 hours rated life / 3 year warranty
Decriptions
The 2020 3D-Bend Flex Wall Washer features high-efficiency LEDs available in a selection of fixed color temperatures (2700K/3000K/4000K/6000K) and control options (DMX white/CCT/RGB/RGBW), delivering consistent illumination with options for solid color or DMX-controlled dynamic effects for a variety of lighting applications. Encapsulated in high-quality PU, the strip achieves an IP65 waterproof rating, making it ideal for reliable outdoor use. Equipped with precision optical lenses, it offers a 30° beam angle, perfectly suited for illuminating coves, domes, and curved facades. Designed for convenience, it includes a 3M self-adhesive backing, enabling quick and easy installation into LED channels. Operating at DC24V with 24 LEDs per meter, this wall washer provides consistent illumination with a CRI > 80 and is backed by a 3-year warranty for long-lasting performance.
Order Information
Single Color Options
| Model | Voltage | Color (K) | Power | LED Type | LED Qty | Efficacy (lm/W) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| W12W65-303027-024CV-024S-WY3-2020 | 24V | 2700K | 18W | 3030 | 24 | 60 | IP65 | 90 | 125mm/3LEDs |
| W12W65-303030-024CV-024S-WY3-2020 | 24V | 3000K | 18W | 3030 | 24 | 60 | IP65 | 90 | 125mm/3LEDs |
| W12W65-303040-024CV-024S-WY3-2020 | 24V | 4000K | 18W | 3030 | 24 | 60 | IP65 | 90 | 125mm/3LEDs |
| W12W65-303060-024CV-024S-WY3-2020 | 24V | 6000K | 18W | 3030 | 24 | 60 | IP65 | 90 | 125mm/3LEDs |
DMX Options
| Model | Voltage | Color (K) | Power | LED Type | LED Qty | Pixels (Pixels/M) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| W12W65-3030XX-024DMX-024S-WY3-2020 | 24V | 2700K | 18W | 3030 | 24 | 8 | IP65 | 90 | 125mm/3LEDs |
| W12W65-3030TW-024DMX-024S-WY3-2020 | 24V | 3000K | 18W | 3030 | 24 | 4 | IP65 | N/A | 125mm/3LEDs |
| W12W65-3030TC-024DMX-024S-WY3-2020 | 24V | 4000K | 18W | 3030 | 24 | 4 | IP65 | N/A | 125mm/3LEDs |
| W12W65-3030MC-024DMX-024S-WY3-2020 | 24V | 6000K | 18W | 3030 | 24 | 4 | IP65 | N/A | 125mm/3LEDs |
Download
Accessories

2PCN-2020-004
Aluminun Clip for 20*20 Wall washer, 20mm length, with Hole

2PCN-2020-005
Aluminun Channel for 20*20 Wall washer, 1000mm length, with 2pcs Holes

2PCN-2020-006
Flexible neon channel, for 20*20 Wall washer, customized length

2PCN-2020-003
End cap (without hole), silicone material, for 20*20 wall washer

2PCN-2020-002
End cap (with hole at side face) silicone material, for 20*20 wall washer

2PCN-2020-001
End cap (with hole at top face) silicone material, for 20*20 wall washer
