2527 3D Bend Wall washer DC 24V 24W IP65 outdoor waterproof 3030 Flexible Wall washer
- DC24V Input Voltage, 24LEDs per Meter
- Made of high quality silicone tube
- Available in multiple color options: White, DMX White, CCT, RGB, RGBW support
- Flexible ‘3D bend’ design for creative LED strip installation
- Beam Angle at 30 or 10*60° degree
- High efficacy up to 1600 lm per meter

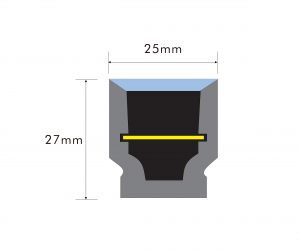

- width 25mm, height 27mm
- High color rendering index (CRI 90 as standard)
- Encapsulated with high quality silicone, IP65 waterproof
- 50,000 hours rated life / 3 year warranty
Decriptions

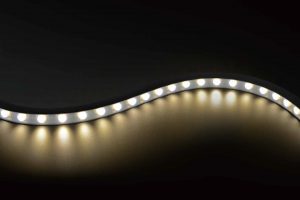

The 2527 3D-Bend Flex Wall Washer features a robust 25*27mm profile and high-efficiency LEDs available in a selection of fixed color temperatures (2700K/3000K/4000K/6000K) and control options (DMX white/CCT/RGB/RGBW), delivering consistent illumination with options for solid color or DMX-controlled dynamic effects. Encapsulated in high-quality PU, the strip achieves an IP65 waterproof rating, making it ideal for reliable outdoor use. Equipped with precision optical lenses, it offers a choice of 30° or 10*60° beam angles, perfectly suited for illuminating coves, domes, and curved facades with professional light distribution. Designed for convenience, it includes a 3M self-adhesive backing, enabling quick and easy installation into LED channels. Operating at DC24V with 24 LEDs per meter, this wall washer provides consistent illumination with a CRI > 80 and is backed by a 3-year warranty for long-lasting, stable performance.
Order Information
Single Color Options
| Model | Voltage | Color (K) | Power | LED Type | LED Qty | Efficacy (lm/W) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| N10W67-283527-024CV-168S-WYX-T2014 | 24V | 2700K | 14W | 2835 | 168 | 60 | IP67 | 90 | 11.9mm/2LEDs |
| N10W67-283530-024CV-168S-WYX-T2014 | 24V | 3000K | 14W | 2835 | 168 | 65 | IP67 | 90 | 11.9mm/2LEDs |
| N10W67-283540-024CV-168S-WYX-T2014 | 24V | 4000K | 14W | 2835 | 168 | 70 | IP67 | 90 | 11.9mm/2LEDs |
| N10W67-283560-024CV-168S-WYX-T2014 | 24V | 6000K | 14W | 2835 | 168 | 65 | IP67 | 90 | 11.9mm/2LEDs |
CCT Options
| Model | Voltage | Color (K) | Power | LED Type | LED Qty | Efficacy (lm/W) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| W20W65-3030TW-024CV-024S-MYX-2527 | 24V | 2700-6000K | 24W | 3030 | 24 | 50 | IP65 | 90 | 41.5mm/2LEDs |
RGB Options
| Model | Voltage | Color | Power | LED Type | LED Qty | Efficacy (lm/W) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| W20W65-3030TC-024CV-024S-MY3-2527 | 24V | RGB | 24W | 3030 | 24 | N / A | IP65 | N / A | 41.5mm/2LEDs |
RGBW Options
| Model | Voltage | Color (K) | Power | LED Type | LED Qty | Efficacy (lm/W) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| W20W65-3030MC-024CV-024S-MY3-2527 | 24V | RGBW | 24W | 3030 | 24 | N / A | IP65 | N / A | 41.5mm/2LEDs |
SPI Options
| Model | Voltage | Color | Power | LED Type | LED Qty | Pixels (Pixels/M) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| W20W65-3030TC-024AD-024S-MY3-2527 | 24V | RGB SPI | 24W | 3030 | 24 | 4 | IP65 | N / A | 250mm/6LEDs |
| W20W65-3030MC-024AD-024S-MY3-2527 | 24V | RGBW SPI | 24W | 3535 | 24 | 4 | IP65 | N / A | 250mm/6LEDs |
DMX Options
| Model | Voltage | Color (K) | Power | LED Type | LED Qty | Pixels (Pixels/M) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| W20W65-3030XX-024DMX-024S-MY3-2527 | 24V | White DMX | 24W | 3030 | 24 | 8 | IP65 | 80 | 125mm / 3LEDs |
| W20W65-3030TW-024DMX-024S-MY3-2527 | 24V | CCT DMX | 24W | 3030 | 24 | 4 | IP65 | 80 | 250mm / 6LEDs |
| W20W65-3030TW-024DMX-024S-MY3-2527 | 24V | CCT DMX | 24W | 3030 | 24 | 8 | IP65 | 80 | 125mm / 3LEDs |
| W20W65-3030TC-024DMX-024S-MY3-2527 | 24V | RGB DMX | 24W | 3030 | 24 | 4 | IP65 | N / A | 250mm / 6LEDs |
| W20W65-3535MC-024DMX-024S-MY3-2527 | 24V | RGBW DMX | 24W | 3535 | 24 | 4 | IP65 | 80 | 250mm / 6LEDs |
| W20W65-3535MC-024DMX-024S-MY3-2527 | 24V | RGBW DMX | 24W | 3535 | 24 | 8 | IP65 | 80 | 125mm / 3LEDs |
Accessories

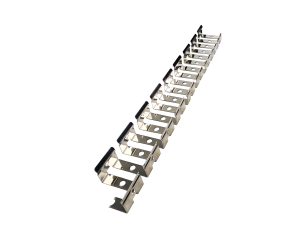

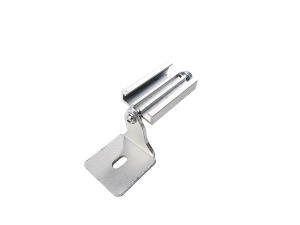

2PCN-W2527-007
Rotated clips, need work with aluminum channel or aluminum clips

2PCN-W2527-006

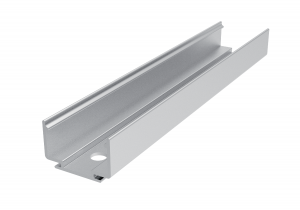

Flexible Aluminum channel for 25*27mm

2PCN-W2527-004

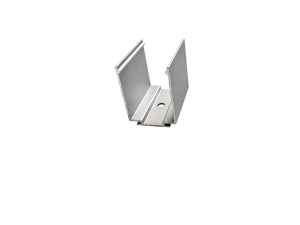

Aluminum clip for 25*27mm 20mm

2PCN-W2527-005

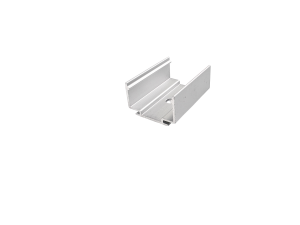

Aluminum clip for 25*27mm 20mm

2PCN-W2527-004A

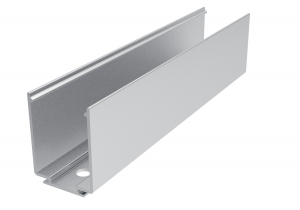

Aluminum channel for 25*27mm one meter length

2PCN-W2527-005A
Aluminum channel for 25*27mm one meter length

2PCN-W2527-001
Silicone material, for 25×27mm end cap with hole for wire, straight cable outlet.

2PCN-W2527-002
Silicone material, for 25*27mm end cap without hole
