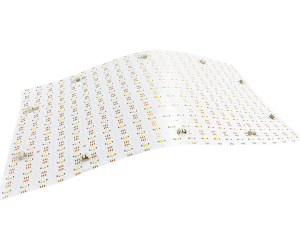

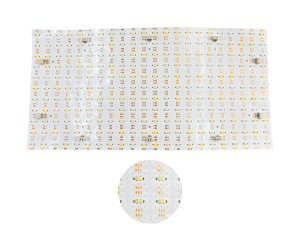

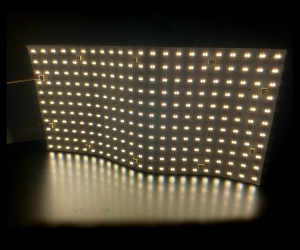

2835 484LED 490*245mm DC24V 40W IP44 waterproof 2835 Dual Color Panel Sheet
- DC24V Input Voltage, 484LEDs per panel
- Made of high quality Silicone Glue Spraying, IP44 waterproof
- Available in multiple color options: CCT Tunable

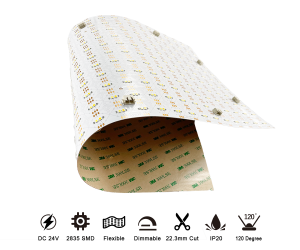

- Flexible ‘panel sheet’ design for creative LED strip installation
- Beam Angle at 120° degree
- High efficacy up to 3500lm per panel

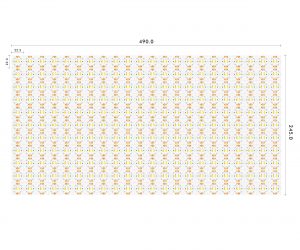

- width 490mm, height 245mm
- High color rendering index (CRI 90 as standard)
- Cutting Pitch 22.3*22.3mm (2LEDs per cutting unit)
- 50,000 hours rated life / 3 year warranty
Decriptions
The LED Flexible Panel Sheet features high-efficiency 2835 LEDs available in CCT Tunable (2700-6500K), delivering consistent color light for a variety of lighting applications. Made of high quality PCB with 2Oz copper thickness, the panel achieves IP20 / IP44 with silicone glue spraying, making it ideal for indoor decorative lighting applications. Equipped with precision cutting pitch at 22.3*22.3mm (2 LEDs), it is perfectly suited for illuminating panels, signs, and curved surfaces. Designed for convenience, it includes a 3M LSE 300 banking tape, enabling quick and easy installation. Operating at DC24V with 484 LEDs per panel, 40W power consumption, this flexible panel provides consistent illumination with a CRI > 90 (Ra90 as standard) and is backed by a 3-year warranty for long-lasting performance.
Order Information
CCT Color Options
| Model | Voltage | Color (K) | Power | LED Type | LED Qty | Efficacy (lm/W) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| SPSW20-2835TW-024CV-484M-WY3-490245 | 24 | 2700-6500 | 40 | 2835 | 484 | 90 | 20 | 90 | 22.3*22.3mm/2LEDs |
