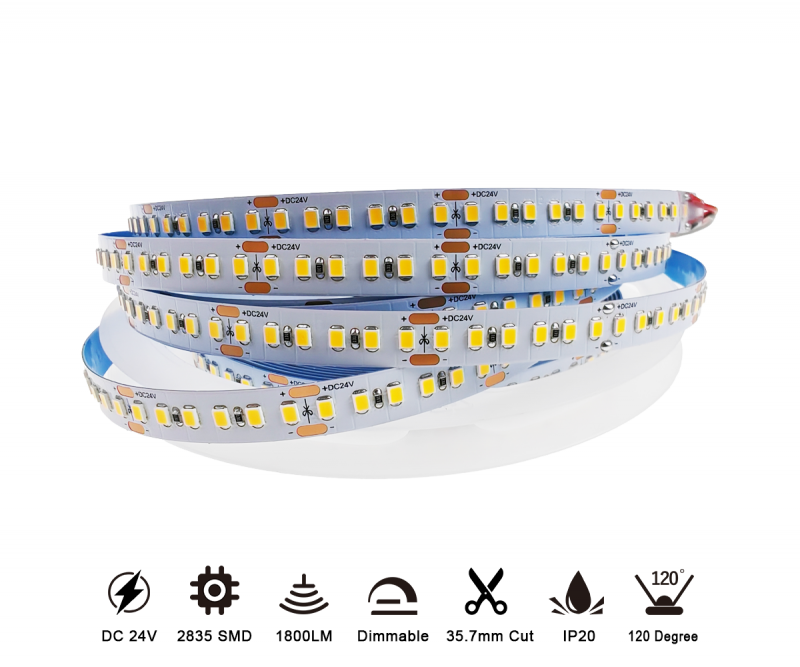

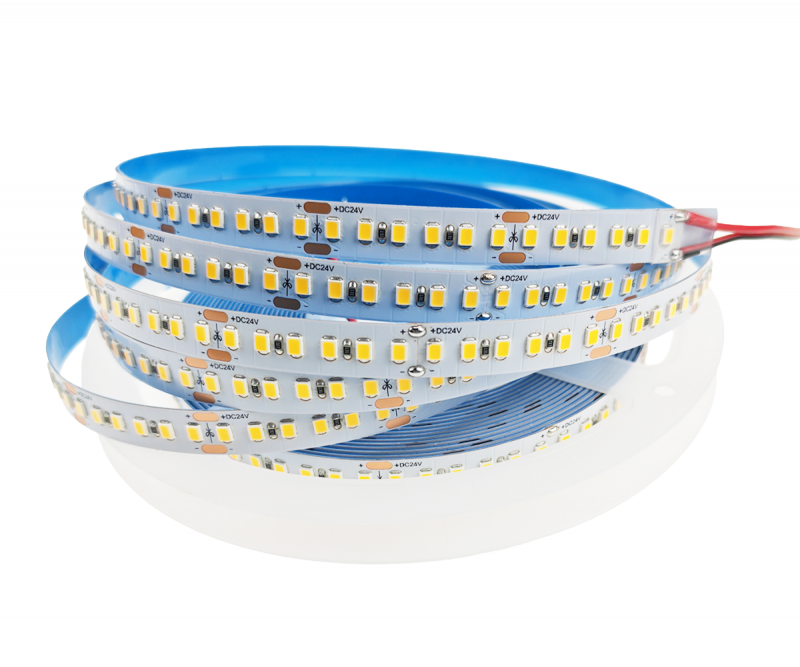

2835 White 168LED DC 24V 16.8W IP67 outdoor waterproof 2835 Led Strip Light
- DC24V Input Voltage
- 2Oz 10mm PCB
- 2835 LED, 168 LEDs, 6 leds per set
- Reaching 1632lm/m
- White is available at 2700K, 3000K, 4000K, 6000K
- IP20, IP65, IP66, IP67 is available
- Cuttable every 35.7mm
- 50,000 hours rated life
Decriptions
This high-brightness LED strip features 2835 LED chips with 168 LEDs per meter arranged in sets of 6, delivering an ultra-bright output of 1632 lm/m while operating on DC 24V with a power consumption of 16.8W per meter. Built on a 10mm 2Oz PCB, it ensures stability, reliability, and efficient heat dissipation, making it ideal for both indoor and outdoor installations. Available in a wide range of white color temperatures from 2700K to 6000K, this strip provides versatile lighting solutions for creating elegant and tailored illumination effects. Designed for convenience, it is cuttable every 35.7mm and comes in multiple IP protection ratings (IP20, IP65, IP66, IP67) to suit different environments(CRI 80+,CRI 90 is optional). Rated for 50,000 hours of operation, it offers long-lasting performance and consistent, high-quality light for a variety of applications.
Order Information
Single Color Options
| Model | Voltage | Color (K) | Power | LED Type | LED Qty | Efficacy (lm/W) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| S10WXX-283527-024CV-168S-WY3 | 24V | 2700K | 16.8W | 2835 | 168 | 85 | IP67 | 90 | 35.7mm/6LEDs |
| S10WXX-283530-024CV-168S-WY3 | 24V | 3000K | 16.8W | 2835 | 168 | 90 | IP67 | 90 | 35.7mm/6LEDs |
| S10WXX-283540-024CV-168S-WY3 | 24V | 4000K | 16.8W | 2835 | 168 | 95 | IP67 | 90 | 35.7mm/6LEDs |
| S10WXX-283560-024CV-168S-WY3 | 24V | 6000K | 16.8W | 2835 | 168 | 90 | IP67 | 90 | 35.7mm/6LEDs |
Download
Accessories

Strip to strip connector
Transparent Acrylic,10mm PCB with 2pins, non waterproof, strip to strip

Strip to Wire
Transparent Acrylic, 10mm PCB with 4pins, 150mm lenght wire, non waterproof strip to Power

Strip to strip with wire
Transparent Acrylic, 10mm PCB with 2pins, 150mm wire, both ends with connector.non waterproof, strip to strip
