5050 128LED 490*245mm DC24V 45W IP20 IP44 waterproof 5050 RGB Color Panel Sheet
- DC24V Input Voltage, 5050 128LEDs per panel
- Made of high quality Silicone Glue Spraying, IP44 waterproof or IP20
- Available in RGB color
- Flexible ‘panel sheet’ design for creative installation
- Beam Angle at 120° degree

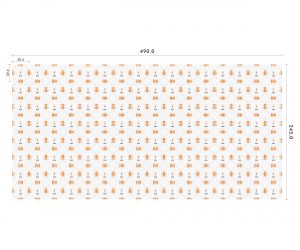

- width 490mm, height 245mm
- High color rendering index (CRI 80 as standard, CRI 90 is optional)
- Cutting Pitch 30.6*30.6mm (1LEDs per cutting unit)
- 50,000 hours rated life / 3 years warranty
Decriptions
The LED Flexible Panel Sheet features high-efficiency 5050 RGB LEDs, delivering vibrant full-color lighting with consistent output for a variety of lighting applications. Made of high quality PCB with 2Oz copper thickness, the panel achieves IP20 / IP44 with silicone glue spraying, making it ideal for indoor decorative lighting applications. Equipped with precision cutting pitch at 30.6 × 30.6mm, it is perfectly suited for illuminating panels, signs, and curved surfaces. Designed for convenience, it includes a 3M LSE 300 backing tape, enabling quick and easy installation. Operating at DC24V with 128 LEDs per panel, 45W power consumption, this flexible panel provides consistent illumination and is backed by a 3-year warranty for long-lasting performance.
Order Information
RGB Color Options
| Model | Voltage | Color (K) | Power | LED Type | LED Qty | Efficacy (lm/W) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| SPSW20-5050TC-024CV-128M-MY3-490245 | 24 | RGB | 45 | 5050 | 128 | N / A | 20 | N / A | 30.6mm*30.6mm/1LEDs |
