5050 288LED 490*245mm DC24V 48W IP20 IP44 waterproof 5050 RGBW Color Panel Sheet
- DC24V Input Voltage, 5050 288LEDs per panel
- Made of high quality Silicone Glue Spraying, IP44 waterproof or IP20
- Available in RGBW color
- Flexible ‘panel sheet’ design for creative installation
- Beam Angle at 120° degree

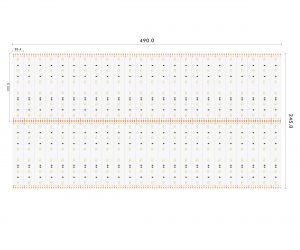

- width 490mm, height 245mm
- High color rendering index (CRI 80 as standard, CRI 90 is optional)
- Cutting Pitch 20.4*122.5mm (6LEDs per cutting unit)
- 50,000 hours rated life / 3 years warranty
Decriptions
The LED Flexible Panel Sheet features high-efficiency 5050 RGBW LEDs available with white color options in 2700K, 3000K, 4000K, and 6000K, delivering vibrant full-color lighting with consistent output for a variety of lighting applications. Made of high quality PCB with 2Oz copper thickness, the panel achieves IP20 / IP44 with silicone glue spraying, making it ideal for indoor decorative lighting applications. Equipped with precision cutting pitch at 20.4 × 122.5mm (6 LEDs), it is perfectly suited for illuminating panels, signs, and curved surfaces. Designed for convenience, it includes a 3M LSE 300 backing tape, enabling quick and easy installation. Operating at DC24V with 288 LEDs per panel, 40W power consumption, this flexible panel provides consistent illumination with a CRI > 80 (Ra80 as standard, Ra90 optional) and is backed by a 3-year warranty for long-lasting performance.
Order Information
RGBW Color Options
| Model | Voltage | Color (K) | Power | LED Type | LED Qty | Efficacy (lm/W) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| SPSW20-5050MC-024CV-288M-MY3-490245 | 24 | RGBW | 48 | 5050 | 288 | N / A | 20 | 80 | 20.4*122.5mm/6LEDs |
