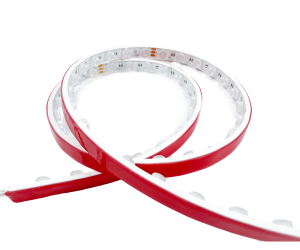

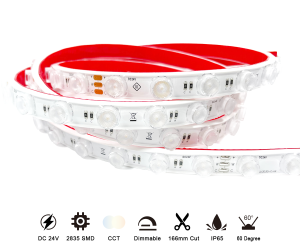

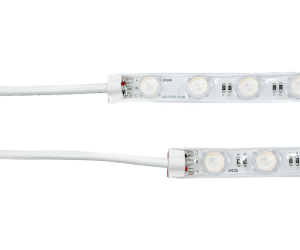

P1409 CCT Top Bend Wall washer DC 24V 15W IP65 outdoor waterproof 2835 Flexible Wall washer
- DC24V Input Voltage, 42LEDs per Meter
- Made of high quality silicone extrusion
- Available in multiple color options: CCT 2700K-6000K
- Flexible ‘Top bend’ design for creative LED strip installation
- Beam Angle at 30 or 60° degree
- High efficacy up to 1300 lm per meter
- width 14mm, height 09mm
- High color rendering index (CRI 90 as standard)
- Encapsulated with high quality PU, IP65 waterproof
- 50,000 hours rated life / 3 year warranty
Decriptions
The P1409 CCT top-Bend Flex Wall Washer features high-efficiency LEDs available in a selection of fixed color temperatures CCT Tunable (2700K-6000K), delivering consistent color light for a variety of lighting applications. Encapsulated in high-quality PU, the strip achieves an IP65 waterproof rating, making it ideal for reliable outdoor use. Equipped with precision optical lenses, it offers 30 and 60° beam angle, perfectly suited for illuminating coves, domes, and curved facades. Designed for convenience, it includes a 3M self-adhesive backing, enabling quick and easy installation into LED channels. Operating at DC24V with 42 LEDs per meter, this wall washer provides consistent illumination with a CRI > 80 and is backed by a 3-year warranty for long-lasting performance.
Order Information
CCT Color Options
| Model | Voltage | Color (K) | Power | LED Type | LED Qty | Efficacy (lm/W) | IP Rating | CRI | Cuttable Length |
|---|---|---|---|---|---|---|---|---|---|
| W10W65-2835TW-024CV-042S-MY3-P1409 | 24V | 2700-6000 | 15W | 2835 | 42 | 72 | IP65 | 80 | 166mm/7LEDs |
Download
Accessories
2PCN-1409-004
Aluminum Clips for 1409 wall washer, 20mm, for straning wire out
2PCN-1409-005
Aluminum Channel for 1409 wall washer, 1000mm, for straning wire out
